Take a tour of the PiCUA WebPanel interface to understand how everything works.

​
Main Interface Layout

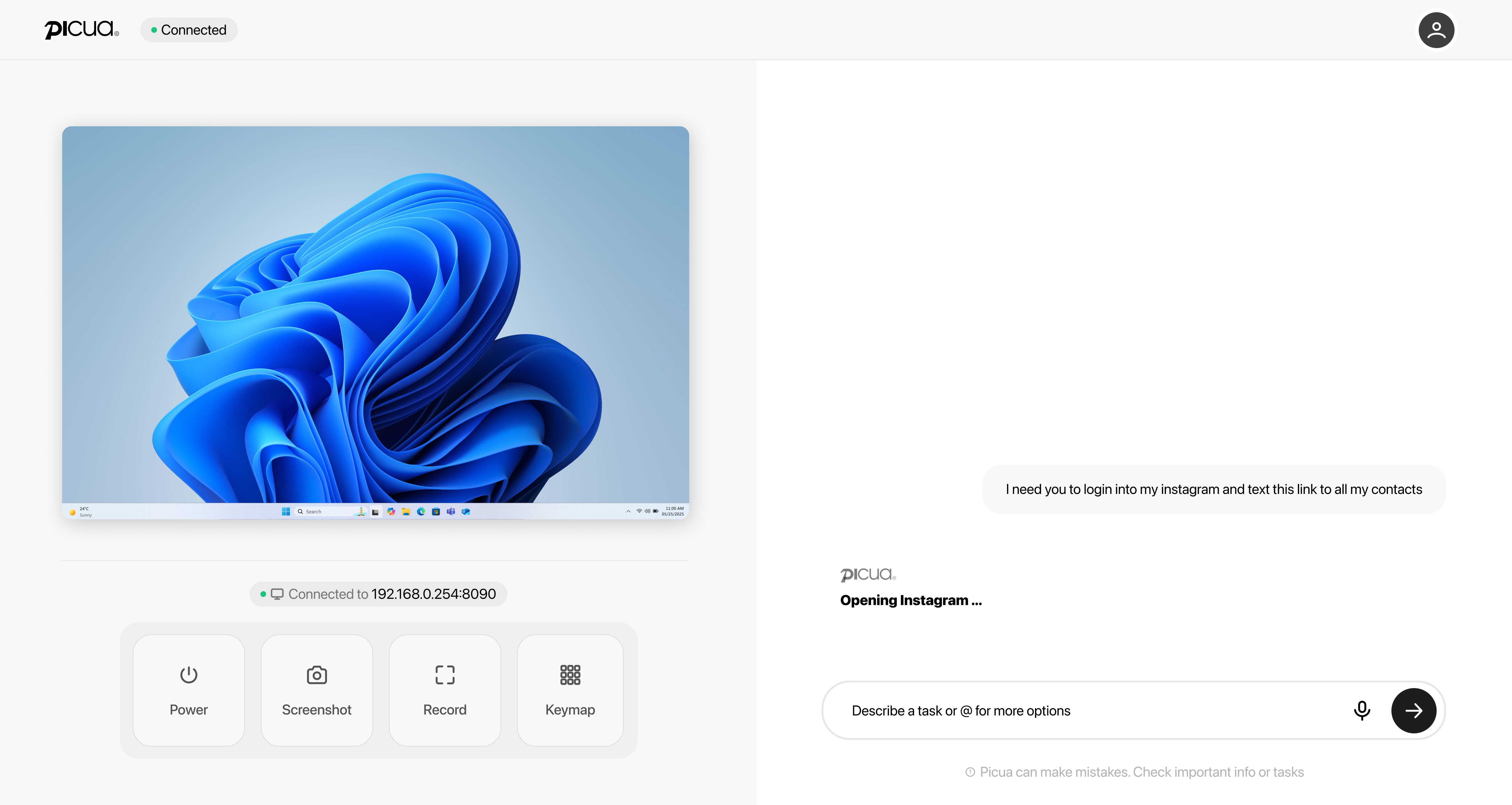

The PiCUA WebPanel has a modern, responsive design with two main panels: PiCUA WebPanel Interface

​
Header Bar

The top header contains essential information and controls:

​
PiCUA Branding

  • Logo: PiCUA logo on the left side
  • Connection Status Badge: Shows current connection state
    • Green: Connected to PiKVM
    • Red: Not connected
    • Yellow: Connection issues

​
User Menu

  • Profile Button: Circular button with user icon
  • Dropdown Menu: Contains logout option
  • Session Management: End current session

​
Left Panel - PiKVM Live Stream

The left panel shows the live view of your target computer:

​
Live Screen Display

  • Real-time Stream: Live view from PiKVM device
  • Responsive Design: Automatically adjusts to screen size
  • Error Handling: Shows error messages if stream fails
  • Loading States: Visual indicators during processing

​
Connection Information

  • Device IP: Shows connected PiKVM IP address
  • Status Badge: Visual connection indicator
  • Connection Time: How long you’ve been connected

​
Quick Action Buttons

Four main action buttons in a grid layout:
  1. Power Button
    • Toggles computer power on/off
    • Changes color based on power state
    • Green = On, Red = Off
  2. Screenshot Button
    • Takes a picture of the current screen
    • Downloads image automatically
    • Camera icon for easy identification
  3. Status Button
    • Shows current connection status
    • Displays device information
    • Activity icon for monitoring
  4. Keymap Button
    • Shows available keyboard keys
    • Helpful for command reference
    • Grid icon for organization

​
Right Panel - Command Line Interface

The right panel provides a full command-line experience:

​
Command History

  • Scrollable Output: Shows all previous commands and responses
  • Color-coded Messages:
    • Gray: Your commands
    • White: System responses
    • Red: Error messages
  • Timestamps: Each message shows when it was sent
  • Rich Formatting: Help and keymap commands display in organized cards

​
Command Input

  • Text Field: Type commands in natural language
  • Auto-completion: Tab key provides suggestions
  • Command History: Arrow keys navigate previous commands
  • Send Button: Arrow icon to execute commands

​
Smart Suggestions

  • Command Completion: Suggests available commands
  • Key Suggestions: Shows valid keys for keyboard commands
  • Shortcut Help: Assists with key combinations
  • Context-aware: Adapts suggestions based on current input

​
Key Features

​
Command System

  • Natural Language: Type commands like “type hello” or “move mouse up”
  • Built-in Help: Use “help” command for all available options
  • Key Reference: “keymap” command shows valid keyboard keys
  • Error Handling: Clear error messages for troubleshooting

​
Connection Management

  • Login Modal: Secure credential entry
  • Session Persistence: Maintains connection across page refreshes
  • Status Monitoring: Real-time connection health
  • Graceful Disconnect: Safe logout process

​
Visual Feedback

  • Processing Indicators: Animated borders during command execution
  • Status Updates: Real-time feedback on all actions
  • Error Display: Clear error messages with suggestions
  • Success Confirmation: Positive feedback for completed actions

​
Using the Interface

​
Basic Workflow

  1. Connect: Use login command or modal to connect to PiKVM
  2. View: See live screen in left panel
  3. Control: Use commands in right panel
  4. Monitor: Watch results in real-time
  5. Disconnect: Use logout when finished

​
Command Examples

  • Login: login 192.168.1.100 admin password
  • Type Text: type "Hello World"
  • Move Mouse: mouse up or mouse-move 500 300
  • Take Screenshot: snapshot
  • Check Status: status
  • Power Control: power on or power off
  • Start Simple: Begin with basic commands like “help” and “status”
  • Use Tab: Auto-complete commands and keys
  • Check History: Review previous commands and responses
  • Monitor Stream: Watch the left panel for visual feedback

​
Responsive Design

​
Desktop Layout

  • Side-by-side: Left panel (stream) and right panel (CLI) side by side
  • Full Height: Both panels use full available height
  • Optimized Spacing: Comfortable viewing and interaction

​
Mobile Layout

  • Stacked: Panels stack vertically on smaller screens
  • Touch-friendly: Optimized for touch interaction
  • Adaptive: Interface adjusts to screen size

​
Troubleshooting

​
Common Issues

  • Stream Not Loading: Check PiKVM connection and credentials
  • Commands Not Working: Verify connection status
  • Interface Slow: Check network connection quality
  • Login Fails: Verify IP, username, and password

​
Getting Help

  • Built-in Help: Use “help” command for command reference
  • Key Reference: Use “keymap” for valid keyboard keys
  • Error Messages: Read error details for troubleshooting
  • Documentation: Refer to this guide for detailed information

​
Next Steps

​
Practice Makes Perfect

The best way to learn the interface is to:
  1. Start with Help: Use “help” command to see all options
  2. Try Basic Commands: Begin with simple commands like “status”
  3. Explore Features: Test different command types
  4. Monitor Results: Watch both panels for feedback
  5. Build Confidence: Gradually try more complex operations
